Flexible Magnetostrictive Probe | Fuel Depot ATG

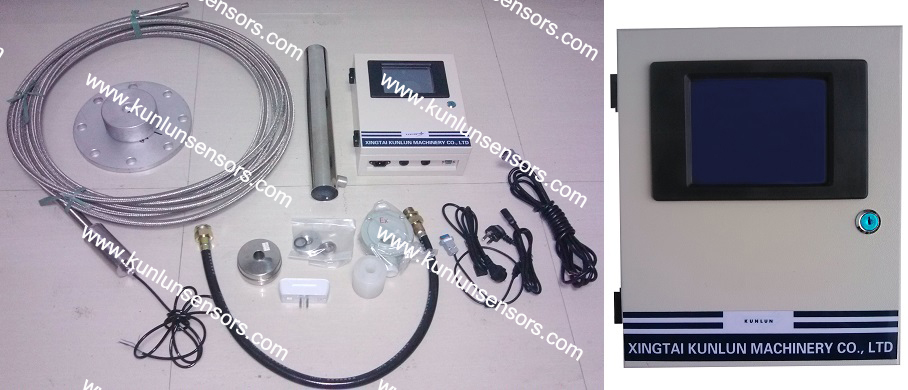

KunLun XT-1000 Magnetostrictive Probe is used for measuring product level and it provides high precision. The probe has advantages such as steadiness,reliability,long-life,finished frame and strong adaptability. It can be installed at the top of tanks and the tank doesn’t need to be cleaned. So it also has advantages such as safety, convenience and fast installation.
The flexible magnetostrictive probe is a practical and cost effective solution for accurately monitoring above ground fuel storage tall tanks with heights of up to 25 meters.
Simple & Cost-Effective Installation
The sensors corrugated hose is stretched by a weight and a magnet
Tried & Tested
High accuracy tank level measurement.
They are ideal for fuel, depots.
Flexible Magnetostrictive Probe Parameters:
Measuring range:0.3~25m
Measuring precision:±1mm
Resolution:0.1mm
Temperature measuring number:5
Temperature measuring range:-40~125°C
Temperature measuring precision:±0.5°C
Temperature measuring resolution:0.0625°C
Working temperature:-40~85°C
Medium density range:0.4~2.5g/cm3
Working pressure:0.05~10MPa
Protective Grade Explosion-proof label:IP67/Exia II CT6
Technics interface:G3/4" or M20×1.5
Electric interface:G1/2" or M20×1.5
Working voltage:DC12~24V
Working current:40mA
Communication protocol: Modbus RS485
Material of the probe Rod and floater:316L
Flexible Magnetostrictive Probe For Fuel Depot Solution:
The Flexible Probe Installation diagram in the two kinds of tank :
